Wyin Aqua Quick-Plug CO2 Adapter

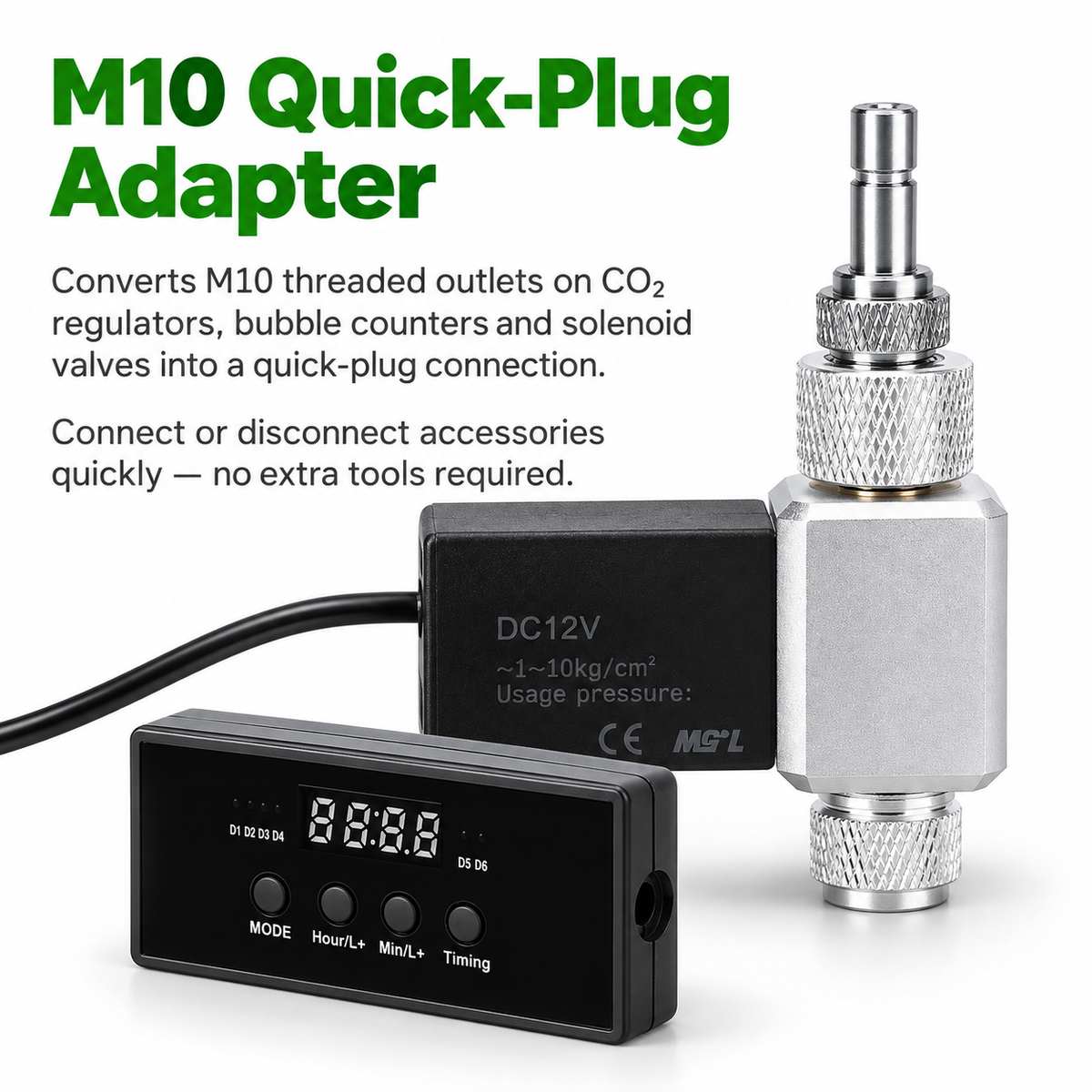

Most CO2 regulators, solenoids and bubble counters use an M10 threaded port, which means undoing nuts and wrestling with tubing every time you change something. The Wyin Aqua Quick-Plug CO2 Adapter screws into that M10 port and turns it into a 6mm quick plug connection. From then on, your CO2 accessories push on and pull off in seconds.

How it works

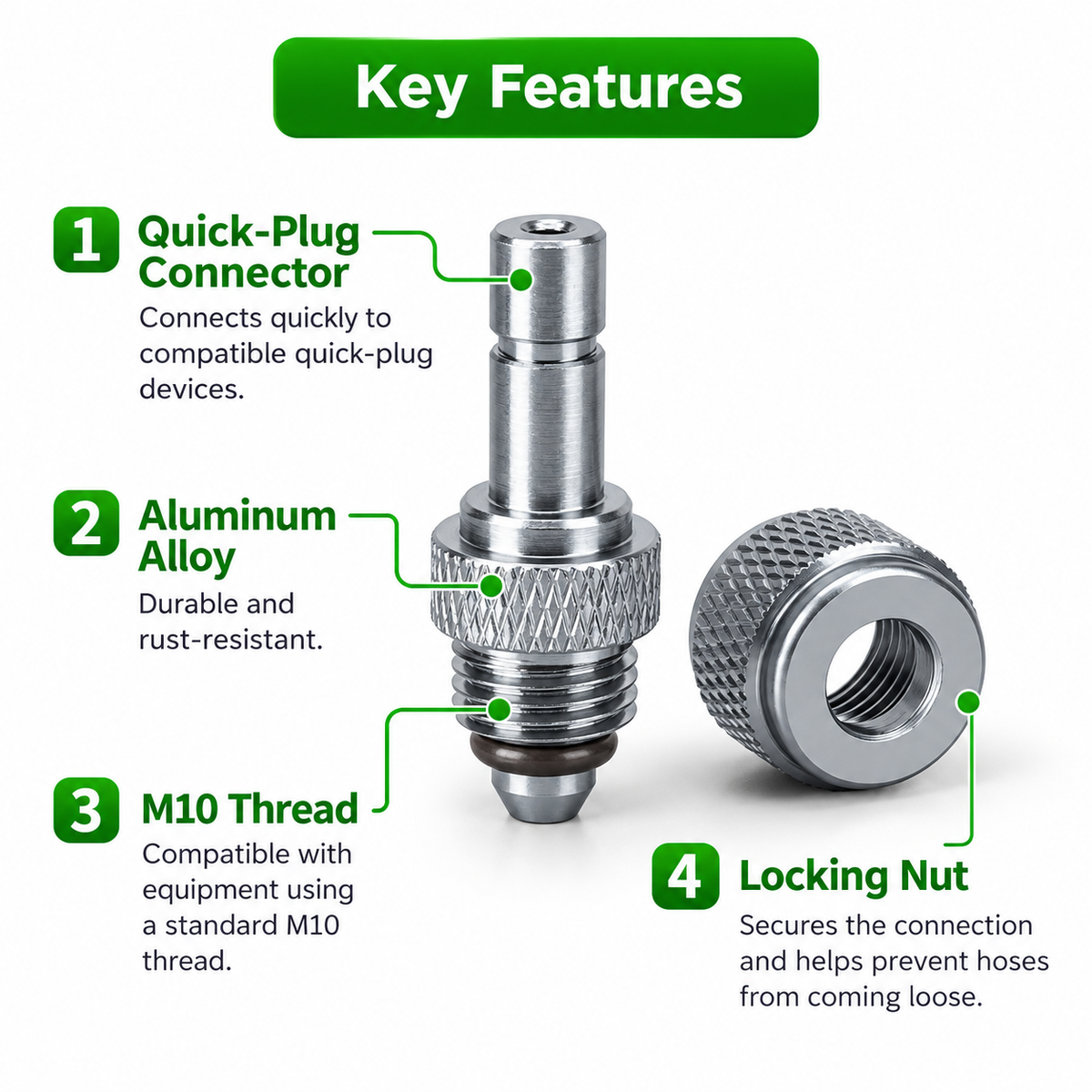

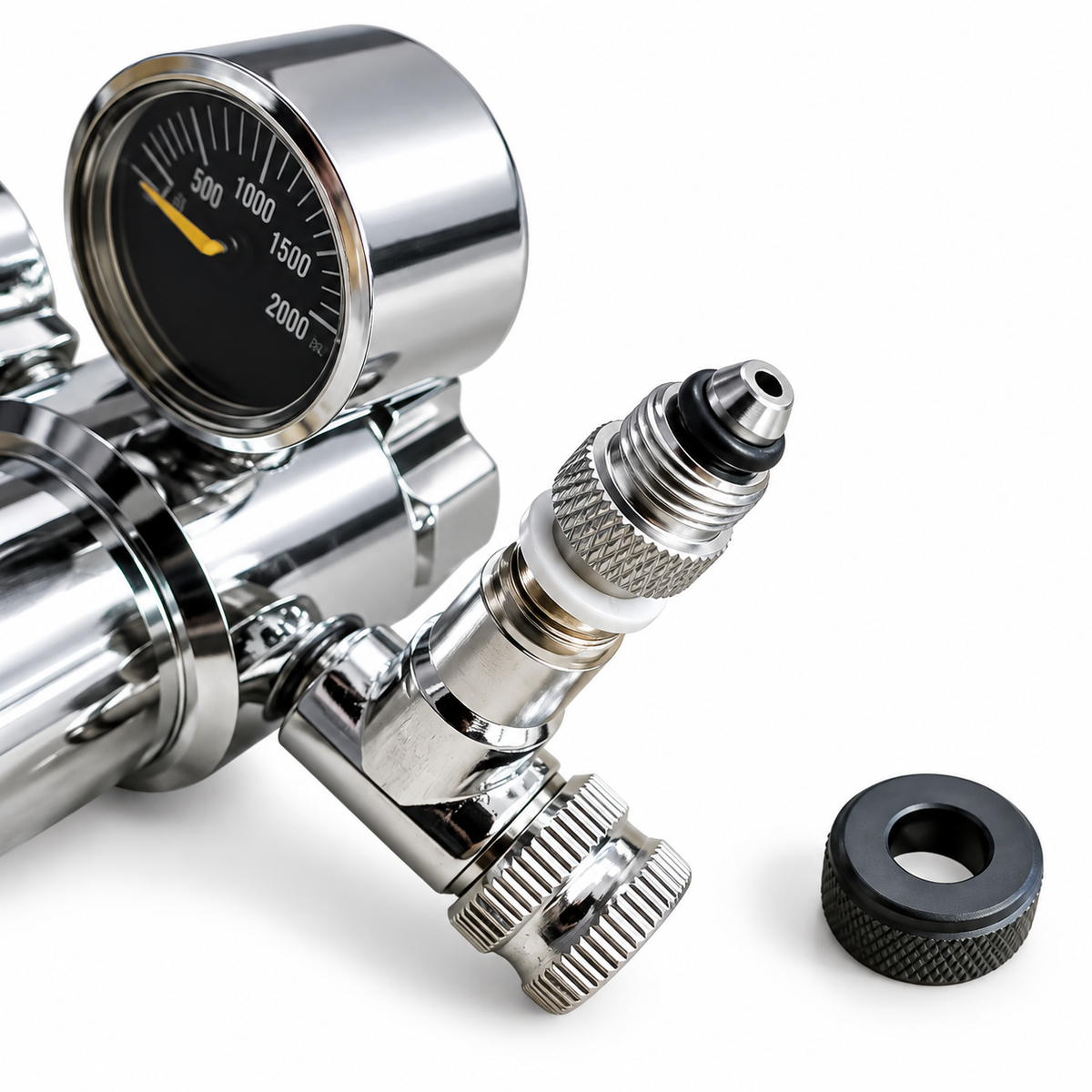

One end has an M10 thread with an O-ring seal. Screw it into the M10 port on your regulator, solenoid or bubble counter and tighten it by hand. The other end is a 6mm quick plug that pushes straight into any 6mm push-fit fitting, such as our Wyin Aqua Quick-Plug CO2 Check Valve. To disconnect, press the collar on the push-fit fitting and pull it off. A knurled locking nut is included to keep the connection secure.

Why you'll like it

• Faster changes. Swap or disconnect CO2 accessories in seconds without undoing nuts or cutting tubing.
• Upgrades the gear you already have. Gives older M10 regulators, solenoids and bubble counters a quick plug connection, so there's no need to replace them.
• No tools needed. The knurled grip tightens by hand.
• Leak resistant. An O-ring on the thread seals against the port.

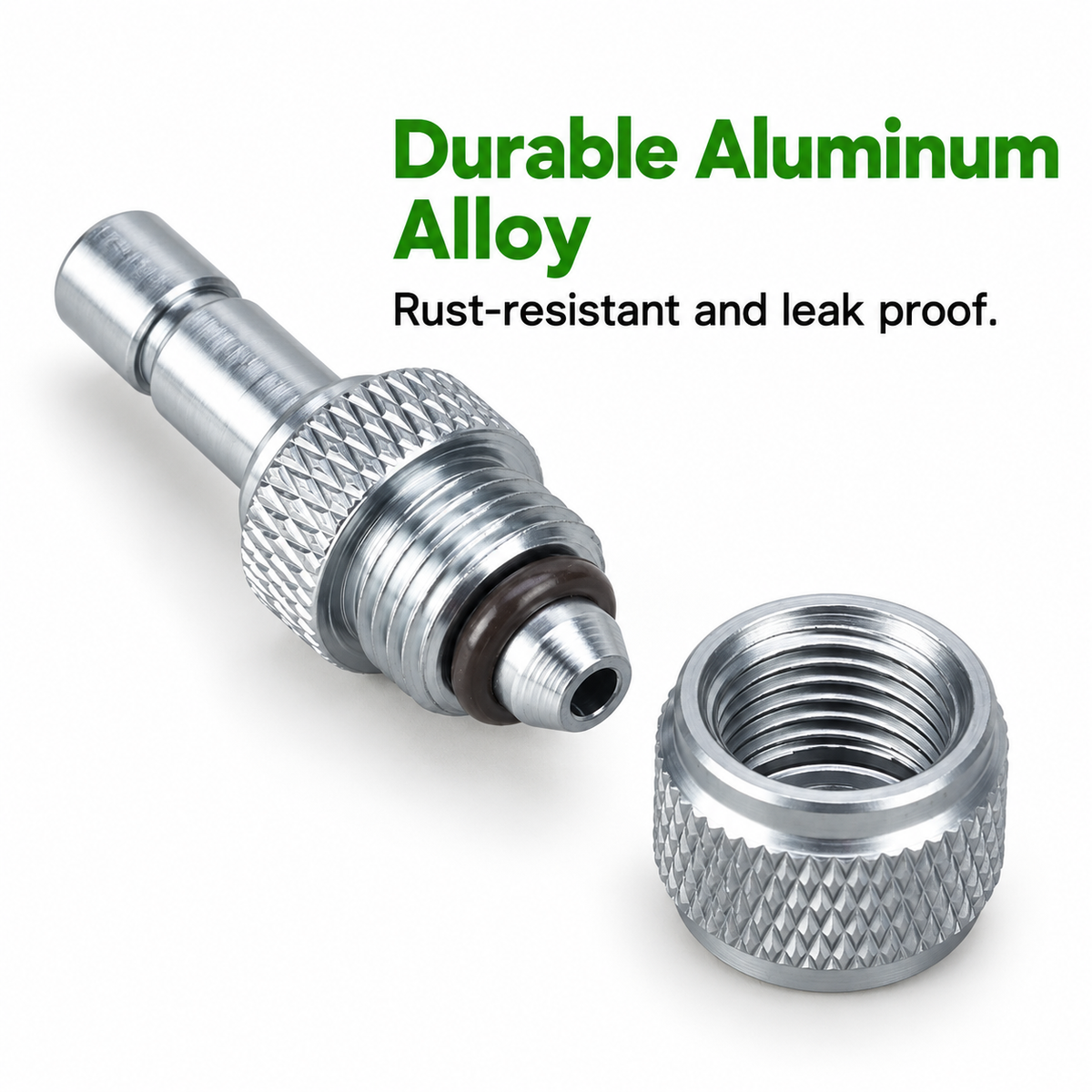

• Built to last. Machined aluminium alloy that resists corrosion.

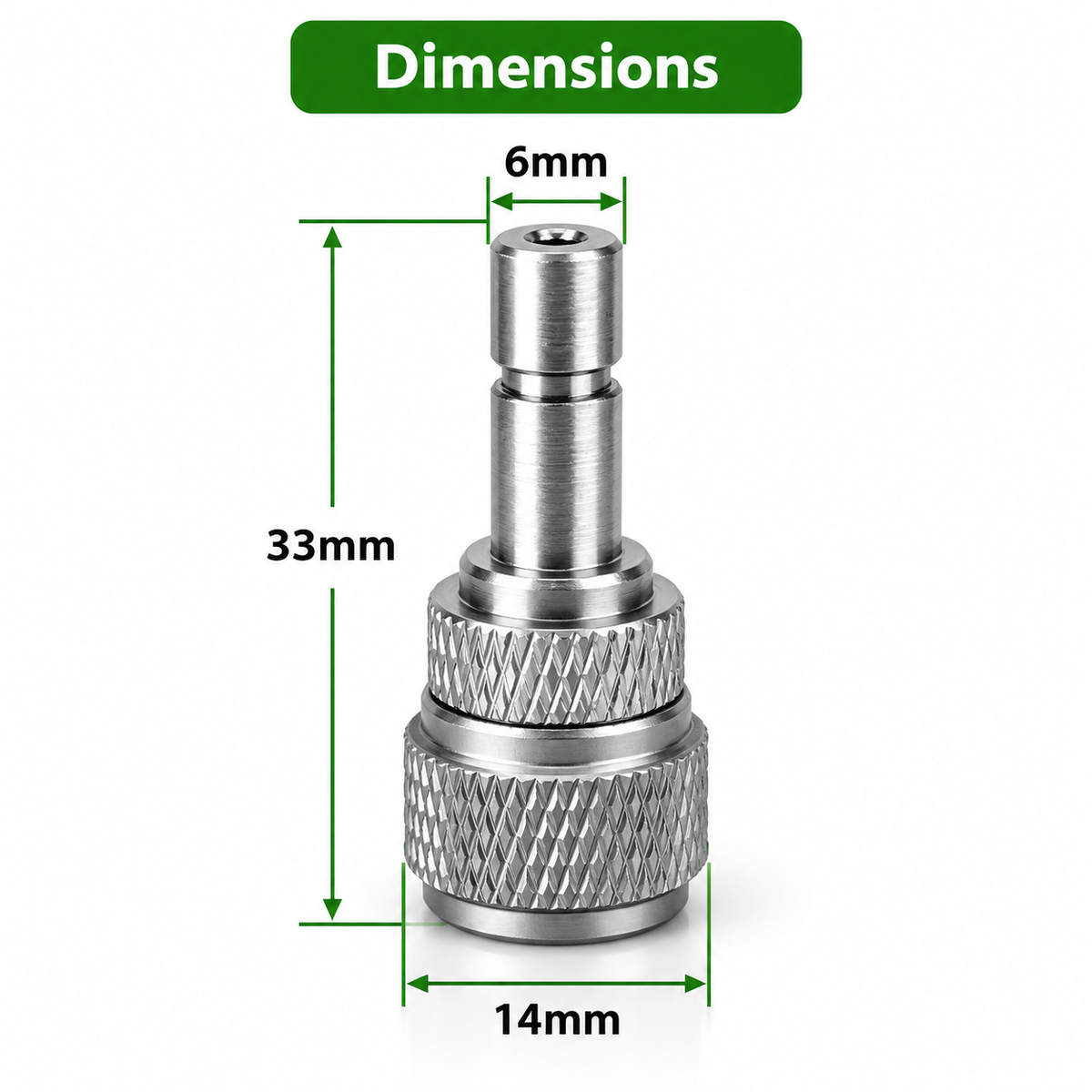

Specifications

• Thread: M10 male with O-ring seal
• Quick plug end: 6mm
• Length: 33mm
• Width: 14mm
• Material: aluminium alloy
• Includes: adapter and locking nut

Installation

1. Turn your CO2 off before changing any fittings.
2. Remove the existing nut or fitting from the M10 port.
3. Check the O-ring is seated, then screw the adapter into the port and tighten by hand until snug.
4. Push your 6mm push-fit fitting or quick plug accessory onto the plug end until it locks.
5. Turn the CO2 back on and check for leaks with a little soapy water.
